Dip Molded PlasticRound Grips - Round End

GripWorks offers the industry’s most complete line of hand grips for round bars and tubes. The unique dip molding production process allows hundreds of variations with respect to wall thickness, hardness, inside length, surface texture, and color.

The following chart highlights our extensive line of round grips that range from 0.165” to 1.625” in diameter. Each set of tooling can manufacture grips in any length up to the maximum inside length stated in the chart. However, some grips can be made in lengths measuring up to 24”. For the most popular sizes, both round end and flat end tooling is available.

Shop Online Now   Quote and Sample Request

Round Grips - Round End

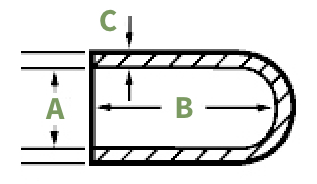

Inside Diameter "A"		Max Inside Length "B"		Nominal Wall Thickness "C"
				(At Min Length)		(At Max Length)
in	mm	in ±.062	mm ±1.57	in ±.010	mm ±.25	in ±.010	mm ±.25
0.165	4.19	3.500	88.90	0.055	1.40	0.055	1.40
0.187	4.75	3.500	88.90	0.055	1.40	0.055	1.40
0.250	6.35	4.250	107.95	0.060	1.52	0.065	1.65
0.305	7.75	7.000	177.80	0.060	1.52	0.065	1.65
0.313	7.95	6.250	158.75	0.060	1.52	0.065	1.65
0.375	9.53	7.000	177.80	0.065	1.65	0.075	1.91
0.437	11.10	5.250	133.35	0.065	1.65	0.075	1.91
0.500	12.70	5.250	133.35	0.065	1.65	0.075	1.91
0.562	14.27	5.250	133.35	0.065	1.65	0.075	1.91
0.600	15.24	5.750	146.05	0.065	1.65	0.075	1.91
0.625	15.88	11.000	279.40	0.065	1.65	0.075	1.91
0.687	17.45	5.250	133.35	0.065	1.65	0.075	1.91
0.750	19.05	11.000	279.40	0.065	1.65	0.075	1.91
0.812	20.62	8.500	215.90	0.070	1.78	0.080	2.03
0.843	21.41	10.000	254.00	0.070	1.78	0.080	2.03
0.875	22.23	8.500	215.90	0.070	1.78	0.080	2.03
0.937	23.80	11.000	279.40	0.070	1.78	0.080	2.03
1.000	25.40	8.500	215.90	0.070	1.78	0.080	2.03
1.062	26.97	5.250	133.35	0.070	1.78	0.080	2.03
1.125	28.58	5.250	133.35	0.070	1.78	0.080	2.03
1.250	31.75	5.250	133.35	0.070	1.78	0.080	2.03
1.500	38.10	5.250	133.35	0.070	1.78	0.080	2.03
1.625	41.28	5.250	133.35	0.070	1.78	0.080	2.03
Chart for typical single dip wall specs - Formulas (Flexfit, Softex™, etc.)
